50mm To 1050mm 1A1 Diamond Wheels For Cemented Carbide OD Grinding

ZHENGZHOU SHINE ABRASIVES CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

50mm To 1050mm 1A1 Diamond Wheels For Cemented Carbide OD Grinding

  • 1
  • 2
  • 3

Brand Name : Shine Abrasives

Model Number : 1A1

Place of Origin : CHINA

MOQ : 1 pcs

Payment Terms : L/C, T/T

Supply Ability : 100 pcs one week

Delivery Time : 5 working days

Packaging Details : 1 pcs in one paper box or export carton

Certification : ISO

Shape : 1A1 Straight

Diameter : 50mm to 1050mm

Bond Type : Resin

Diamond Rim Size : 20x10mm

Diamond Grit : D126

HS Code : 6804211000

Contact Now

1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding



Shine Abrasives resin bond 1A1 Diamond wheel is Superior performance for

grinding non-ferrous materials.

Likes Cemented carbide,Glass,Ceramics,Fiberglass,Plastics,Stone,Abrasives,

Electronic components and materials

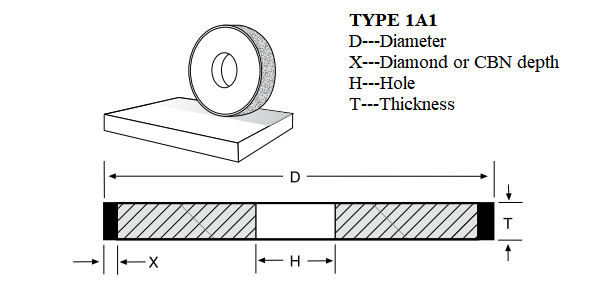

Drawing of Shine Abrasives 1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding



50mm To 1050mm 1A1 Diamond Wheels For Cemented Carbide OD Grinding



 Main sizes of Shine Abrasives 1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding



D-Diameter T-Thickness H-Hole X-Diamond Depth



50mm(2 inch)

10mm

15mm

20mm

25mm

20mm





customized



3mm



5mm



75mm(3 inch)

10mm

15mm

20mm

25mm

30mm

20mm





customized



3mm

5mm





100mm(4 inch)

10mm

15mm

20mm

25mm

30mm

20mm

25.4mm

32mm



customized



3mm

5mm

6mm

10mm



125mm(5 inch)

10mm

15mm

20mm

25mm

30mm

20mm

25.4mm

32mm



customized



3mm

5mm

6mm

10mm



150mm(6 inch)

10mm

15mm

20mm

25mm

30mm

20mm

25.4mm

32mm



customized



3mm

5mm

6mm

10mm



200mm(8 inch)

15mm

20mm

25mm

30mm

35mm

20mm

25.4mm

32mm



customized



5mm

6mm

10mm



250mm(10 inch)

15mm

20mm

25mm

30mm

35mm

40mm

20mm

25.4mm

32mm



customized



5mm

6mm

10mm



300mm(12 inch)

15mm

20mm

25mm

30mm

35mm

40mm

20mm

25.4mm

32mm

76.2mm



customized



5mm

6mm

10mm



350mm(14 inch)

15mm

20mm

25mm

30mm

35mm

40mm

20mm

25.4mm

32mm

76.2mm



customized



5mm

6mm

10mm



400mm(16 inch)

20mm

25mm

30mm

35mm

40mm

50mm

127mm

203.2mm



customized



10mm



500mm(20 inch)

25mm

40mm

50mm

60mm

75mm

127mm

203.2mm

304.5mm



customized



10mm



600mm(24 inch)

25mm

40mm

50mm

60mm

75mm

100mm

127mm

203.2mm

304.5mm



customized



10mm



750mm(30 inch)

25mm

40mm

50mm

60mm

75mm

100mm

127mm

203.2mm

304.5mm



customized



10mm



850mm(34 inch)

25mm

40mm

50mm

60mm

75mm

100mm

127mm

203.2mm

304.5mm



customized



20mm



900mm(36 inch)

25mm

40mm

50mm

60mm

75mm

100mm

127mm

203.2mm

304.5mm



customized



20mm



1050mm(42 inch)

25mm

40mm

50mm

60mm

75mm

100mm

127mm

203.2mm

304.5mm



customized



20mm

Full range Diamond grit sizes are available as below chart.

Application Grit size

Grit size

asFEPA-1977 standard

Grit size as Chinese GB standard
Roughing 80#,100# D251 D213 D181 60/70 70/80 80/100

Roughing

cutting

120# D151 D126 100/120 120/140

Combined roughing and finishing





150#



D107



140/170

Improving finish 180# D91 170/200

Finishing

Fine Finishing

220#

320#

400#

D76

D64

D54

D46

200/230

230/270

270/325

325/400



Super Fine Finishing



800#

1000#

M10

M6.3

W10

W7



Shine Abrasives full range Diamond concentration are available as below chart.



concentration Features Application







Diamond abrasive concentration selected based on grinding wet or dry, material removal rates and form holding requirements

50%

Most economical







For broad area of contact grinding

75%





Freer cutting than 100% and the most economical for dry grinding with ASD diamond.



100%



Very durable Recommended under flood coolant conditions; for use with 220 grit or finer, when durability is required, and for cut-off applications.



125%



Form holding Used in high-volume, high-pressure coolant, precision applications



Other special Resin bond 1A1 Diamond Wheels sizes,Diamond grit size, Diamond concentration can be customized made.



Features of Shine Abrasives 1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding

High quality synthetic diamond abrasives.

High material removal rates with longer wheel life vs. conventional green silicon carbide wheels

Wide variety of wheel standard shapes and bond options available



Free cutting; superior form holding,

efficient and available for wet or dry grinding.

Ideal for dry tool-room reconditioning applications

Fast stock removal, cool cutting; excellent for dry offhand finishing of carbide.

Most durable under high grinding forces, excellent for wet, offhand finishing of carbide tools.
